Fire Alarm Systems

Description

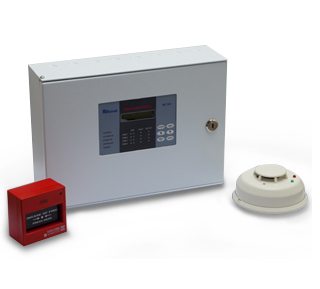

The RE - 102 / 104 is a 2 / 4 zone microprocessor based conventional Fire Alarm Control Panel. The Panel accepts water flow devices, conventional input devices like 2 wire smoke detectors, pulls stations and other normally open contact devices. The Outputs include Notification Appliance Circuits (sounders), Three Form – C relays 2 for alarm, 1 for fault and RS485 port to interface with remote annunciator (Optional). It supervises all wiring, AC voltage and Battery level.

Features

  • Rugged CRCA sheet with powder coated finish
  • Operates on 220V, 50Hz AC supply
  • Standby battery back up with built in charging
  • Fire/Fault status in unambiguous colored LED indication
  • Switch mode Power Supply
  • Tactile keypad for easy panel operation
  • System on indication
  • Main, Standby status indication
  • Low battery visual warning audible tone
  • Relay output for actuators for Fire and Fault
  • Lamp test facility
  • Zone wise one man Walk Test facility
  • Zone wise isolation facility with loop voltage cut off
  • Compatible to all types of conventional detectors

Eurovigil is available ONLY through a demo at your home or office by our Trained Specialist.

Technical Specifications


Operating Voltage 24V DC
Weight 4 Kg
Power Supply 220V AC 50 Hz 24V DC
Operating Conditions -10 to 45 deg C, 95% RH Max.
Normal Loop Voltage 20.7 DC
Open Threshold Current 4.2mA
Short Circuit Threshold Current 40mA
Stand by Threshold Current 8.2mA
Alarm Current 20-35 mA
Quiescent Current 60 mA
Colour of Panel Broken White (Red, Red Texure - Optional)
Panel Size 350 x 250 x 100 (W x H x D)
Alarm Output (Common Hooter O/p) 24V @ 1A
Remote Outputs Fire, Fault Relay Contacts (30V AV/DC @ 2A Contact)

Note: Technical Specifications are subject to change without prior notice.

Devices

OPTICAL SMOKE DETECTOR
  • LPCB and CE certified
  • Bi-colour LED detector status indicator
  • Wide operating voltage 8 to 30VDC
  • Programmable sensitivity

lease Note: This device is not a part of the Standard Package. Available as an accessory at an additional cost.

  • Operating Voltage: 8 to 30VDC (Nominal 12/24VDC)
  • Height:38mm (plus 9mm for B401 base)
  • Diameter: 102mm

Note: Technical Specifications are subject to change without prior notice.

HEAT DETECTOR
  • LPCB and CE certified
  • Bi-colour LED detector status indicator
  • Wide operating voltage 8 to 30VDC
  • Programmable sensitivity

  • Operating Voltage: 8 to 30VDC (Nominal 12/24VDC)
  • Height:48mm (plus 9mm for B401 base)
  • Diameter: 102mm

2 ZONE CONVENTIONAL FIRE ALARM PANEL
  • 2 Zone Fire control Panel
  • Connect upto 25 detectors per zone
  • Fire / Fault status indicator
  • Tactile Keypad for easy operation
  • Low battery visual & Audible warning
  • Relay output for actuators for Fire & fault conditions


  • Power Supply : AC 220V AC, 50Hz
  • DC 24VDC
  • Alarm Output: 24V 1 Amps
  • Dimensions: 350 X 250 X 100

Note: Technical Specifications are subject to change without prior notice.
4 ZONE CONVENTIONAL FIRE ALARM PANEL
  • 4 Zone Fire control Panel
  • Connect upto 25 detectors per zone
  • Fire / Fault status indicator
  • Tactile Keypad for easy operation
  • Low battery visual & Audible warning
  • Relay output for actuators for Fire & fault conditions

  • Power Supply : AC 220V AC, 50Hz
  • DC 24VDC
  • Alarm Output: 24V 1 Amps
  • Dimensions: 350 X 250 X 100

Note: Technical Specifications are subject to change without prior notice.
